8 inch Screen Body Temperature Face Recognition System

FacePro8, The 8 inch Big Screen Human Body Temperature Monitoring Face Recognition System. It is Non-contact body temperature detection Facial Recognition system, is fast speed, and real time warning for unmasked or high temperature persons. Automatically register and record data, it is highly improved efficiency. Support SDK and HTTP Protocol under multiple platform such as Windows/Linux.

Products Detail

Products Description

(FacePro8) 8 inch Big Screen Human Body Temperature Monitoring Face Recognition System.
FacePro8 , The 8 inch Big Screen Human Body Temperature Monitoring Face Recognition System. It is Non-contact body temperature detection Facial Recognition system, is fast speed, and real time warning for unmasked or high temperature persons. Automatically register and record data, it is highly improved efficiency.
Support SDK and HTTP Protocol under multiple platform such as Windows/Linux.



Features

●Non-contact body temperature detection Face Recognition system
●Unique face recognition algorithm to accurately recognize faces, fast speed
●Temperature measurement range 30-45 (°C), Accuracy土0.3(°C)
●Real-time warning for unmasked personnel and high temperature
●Automatically register and record data, improve efficiency
●Support binocular live detection
●Support human motion tracking in strong backlight environment
●Support SDK and HTTP protocols under multiple platforms such as Windows I Linux
●22400 face capacity and 100,000 logs
●Support electronic voice broadcast


Specifications

Model
Facepro8
Hardware
CPU
Hi3516DV300
System
Linux operation system
ROM
16G EMMC
Image sensor
1/2.7" CMOS
Lens
4.5mm
Monitor
8inch TFT
Monitor resolution
600*1024
Display
16:9
Temperature Measurement
Infrared measurement,array testing module
Audio output
Speaker,8Ω/2W
Camera Parameters
Camera
Binocular camera supports live detection
Effective pixel
2Mega pixel,1920*1080
Min. lux
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR
≥50db(AGC OFF)
WDR
≥80db
Face Recognition
Height
1.2-2.2 M, angle adjustable
Distance
0.5-2 Meters
View angle
Vertical ±40 degree
Reco. Time
<500ms
Function
Support 22400 faces database and 100000 records
Temperature
Range
30-45(℃)
Accuracy
±0.3(℃)
Distance
0.4M
Response time
<500ms
Interface
Internet interface
RJ45 10M/100M Ethernet
Weigand port
Support input/output 26 and 34
Alarm output
1channel relay output
USB port
1USB port (Can be connected to ID identifier)
General
Power input
DC 12V/3A
Power consumption
20W(MAX)
Working temperature
0℃ ~ 50℃
Humidity
5~90%, no condense

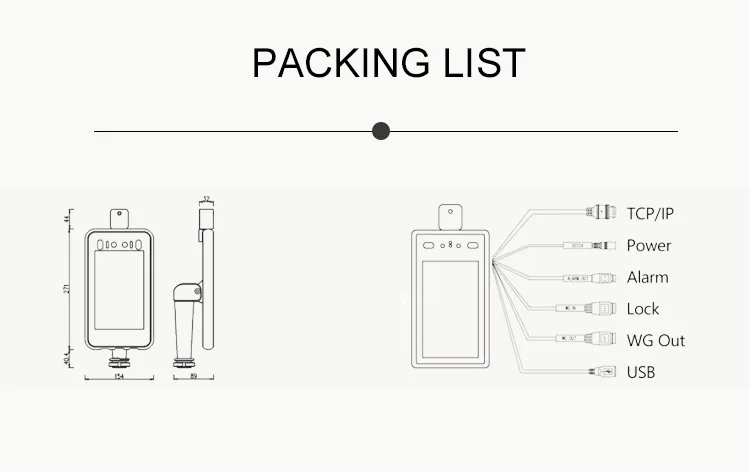

Dimension
154*89*355.4mm
Weight
2.1 kg

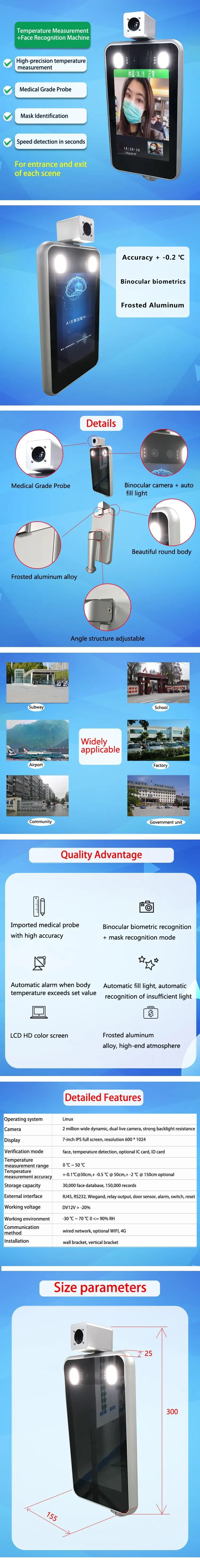

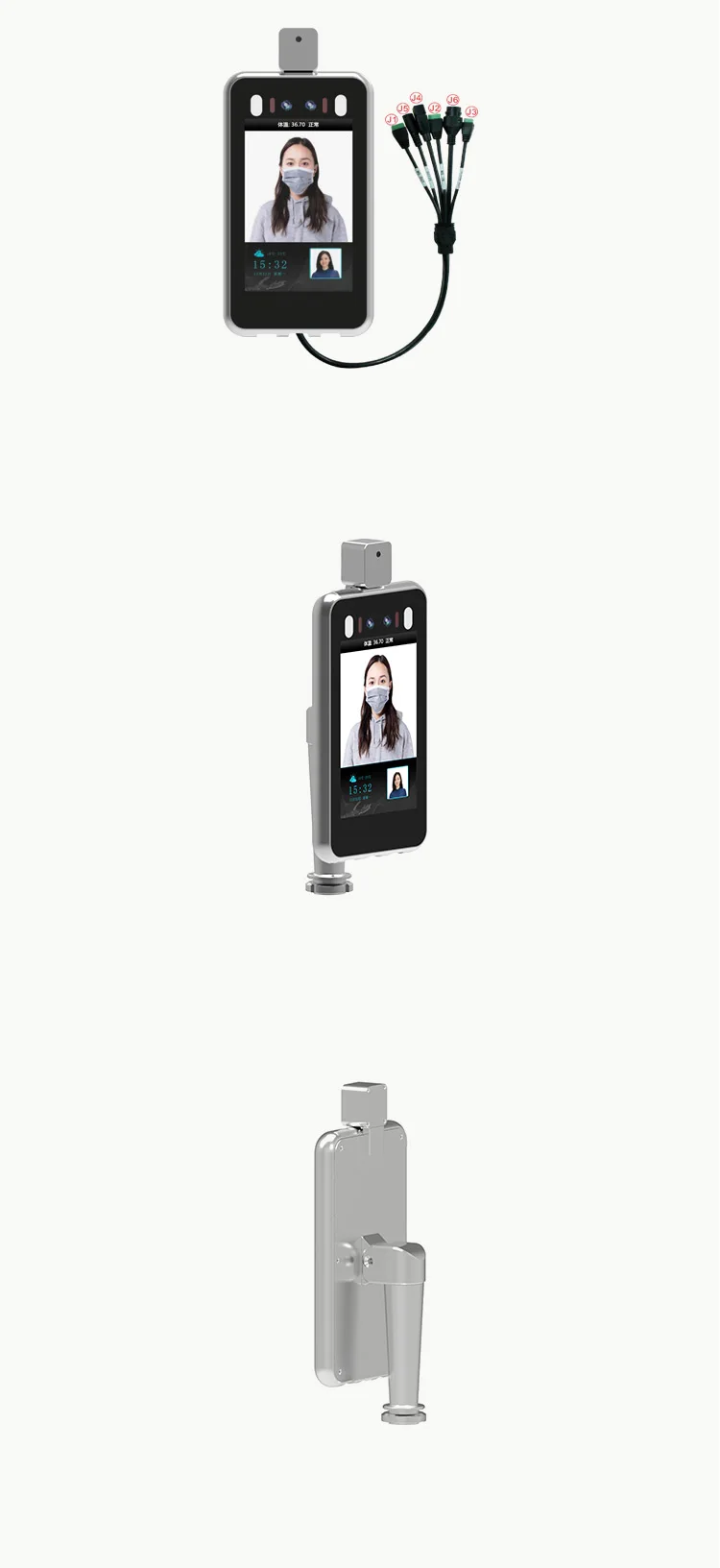

Details Images
