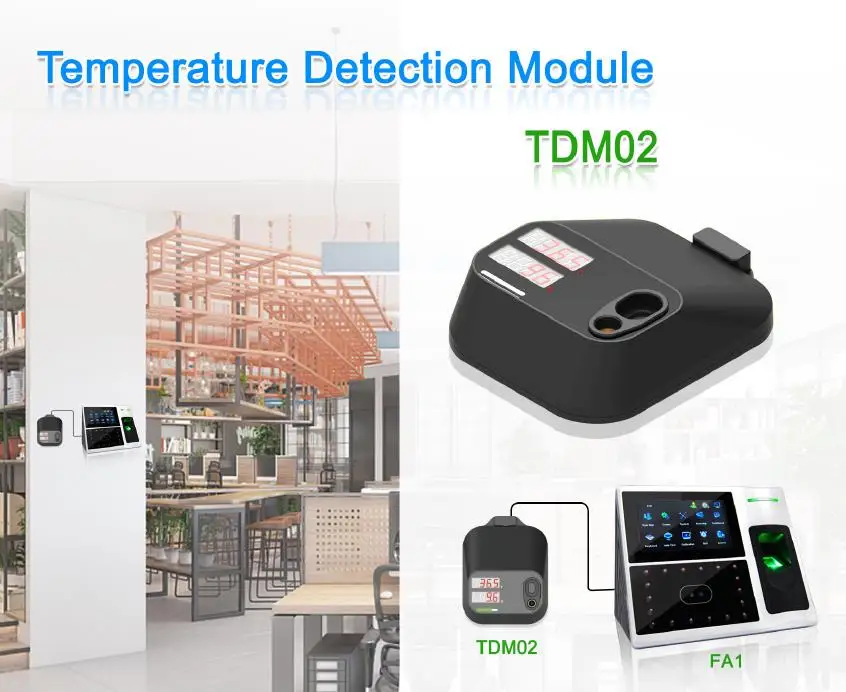

Temperature Detector Module TDMO2 for Biometrics

Model: TDM02, Temperature Detection Module This product is a non-contact electronic module that measures the temperature of the human body. It returns the body temperature of a person by measuring the heat radiation of the palm or wrist, placed in front of the device within a specified distance.

Products Detail

Products Description

Model: TDM02
Temperature Detection Module.
This product is a non-contact electronic module that measures the temperature of the human body. It returns the body temperature of a person by measuring the heat radiation of the palm or wrist, placed in front of the device within a specified distance.

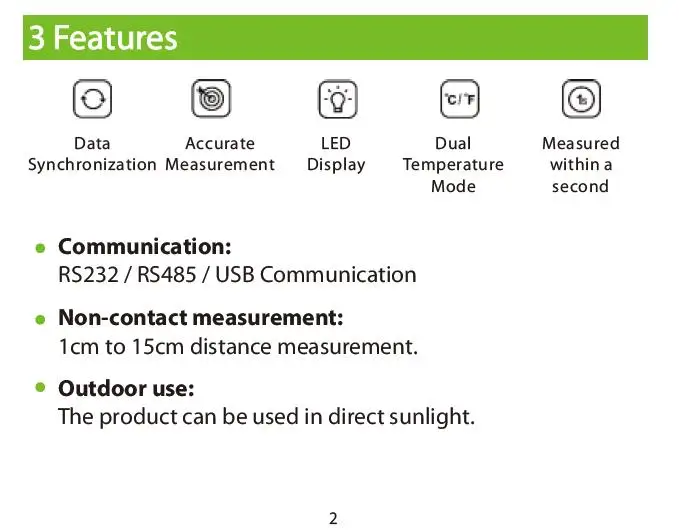

Features

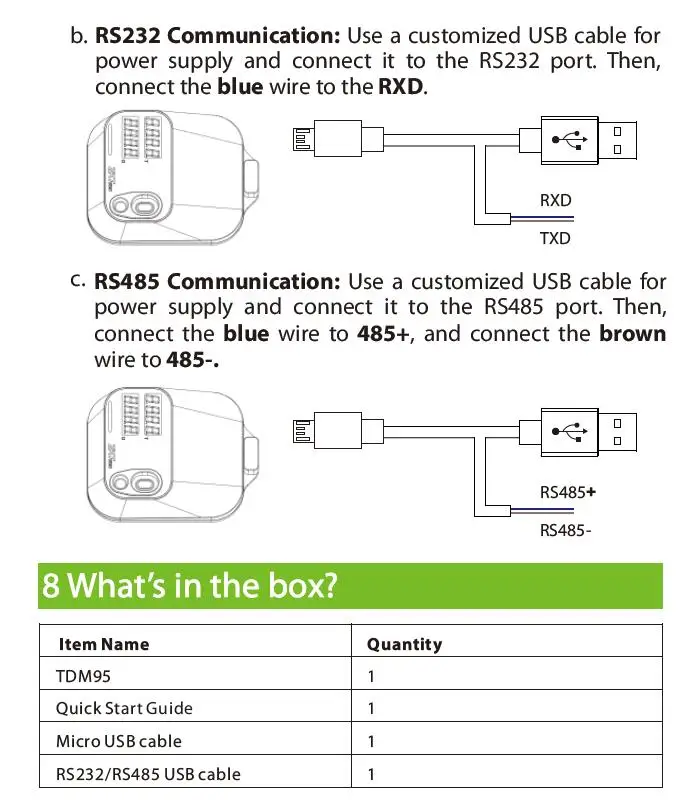

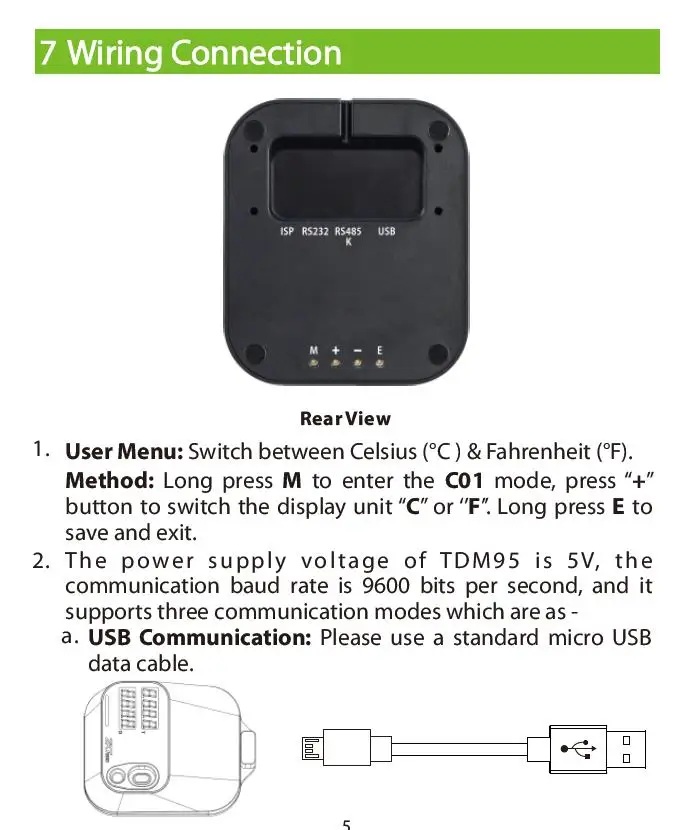

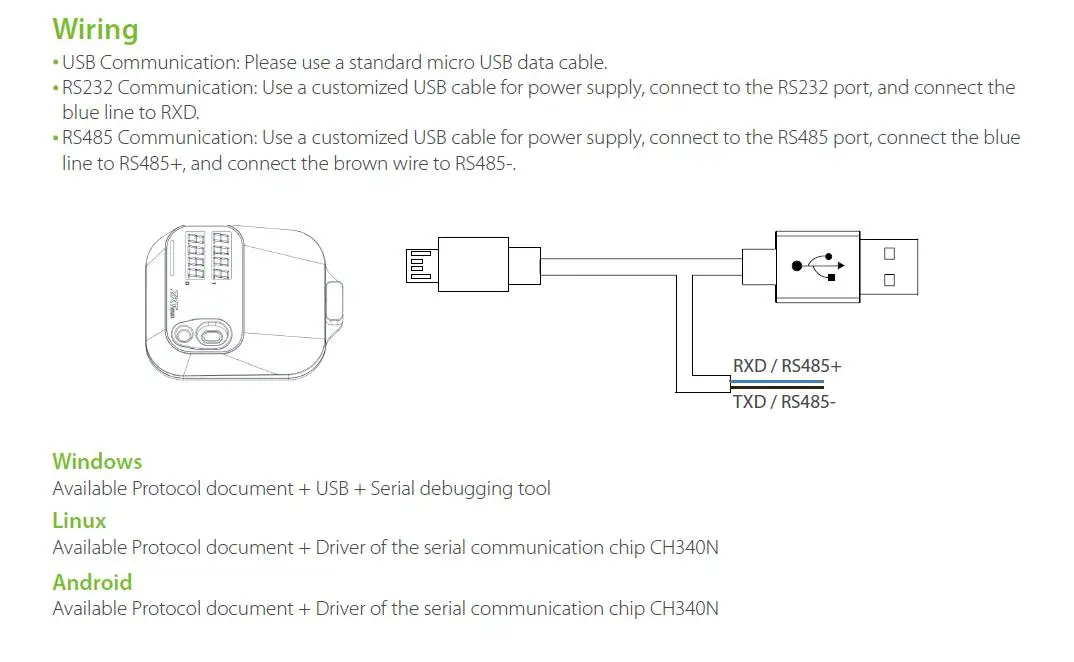

1. RS232/RS485/USB communication;
2. Temperature Measurement Distance: 1cm to 15cm;
3. Temperature Measurement Range: 32.0℃ to 42.9℃ or 89.6℉ to 109.22℉;
4. Deviation: ±0.3℃ or ±0.54℉;

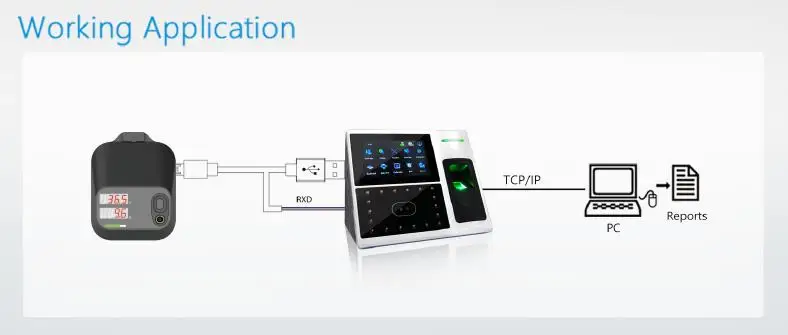

5. TDM02 is an indoor RS232/RS485/USB Module used for Temperature Detection, applicable to both Time Attendance and Access Control devices;

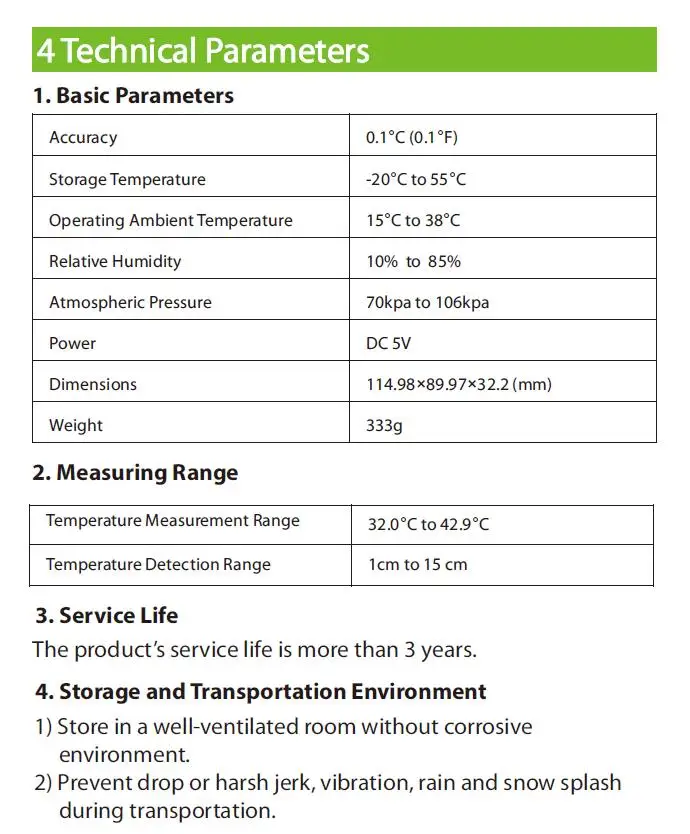

Specifications

Model
TDM02
Communication
RS232/RS485/USB 2.0
USB
Micro USB
Temperature Detection Distance
1-15cm
Temperature Unit
℃ or ℉
Temperature Measurement Range
32.0℃ to 42.9℃ or 89.6℉ to 109.22℉;
Temperature Measurement Deviation
±0.3℃ or ±0.54℉;

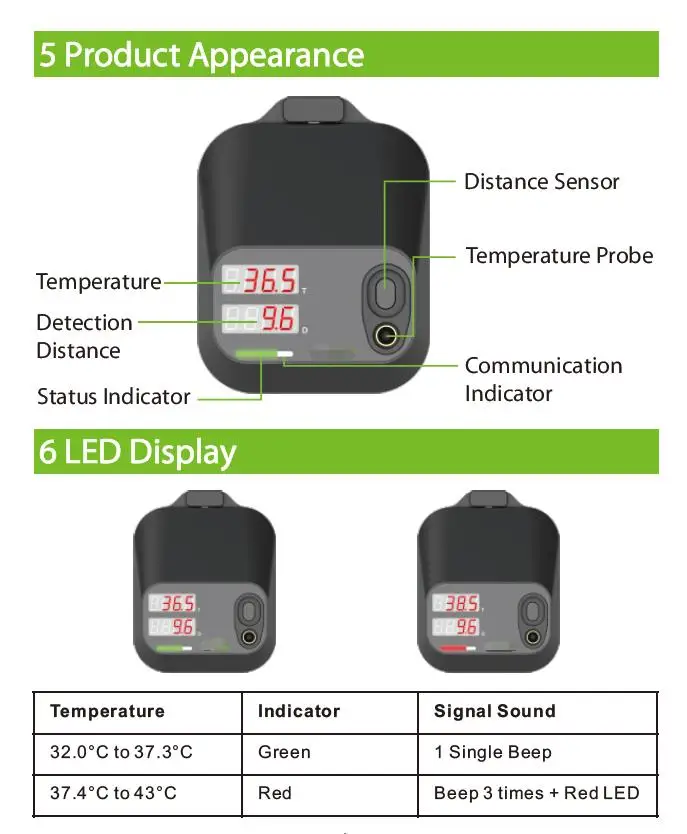

Digital Display Tube
4
Operating Voltage
5V
Operating Temperature
15℃-38℃/59℉-100.4℉
Operating Humidity
10%-85%

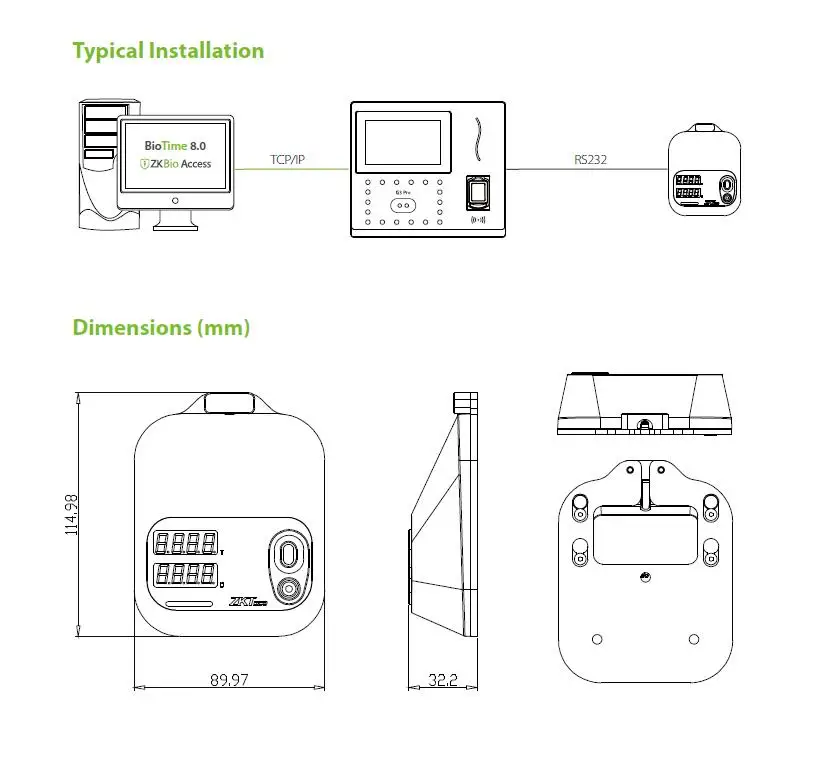

Dimensions
114.98*89.97*32.2CM
Weight of the Device
333g
Weight of the Device with Packaging
473g

Details Images
